| PARALLEL CIRCUITS - CURRENT | ||

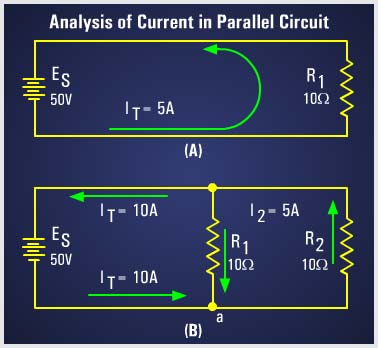

Ohm's law states that the current in a circuit is inversely proportional to the circuit resistance. This fact is true in both series and parallel circuits. There is a single path for current in series circuit (A). The amount of current is determined by the total resistance of the circuit and the applied voltage. In a parallel circuit (B), the source current is divided among the available paths. |
|
|
