| PARALLEL CIRCUITS - RULES | ||

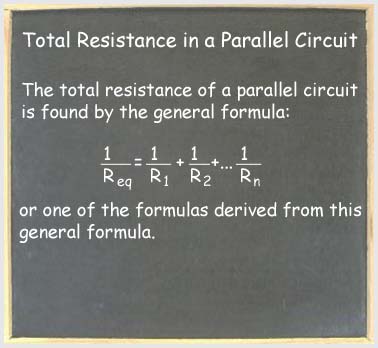

The rules for a parallel circuit can be summarized as: The same voltage exists across each branch of a parallel circuit and is equal to the source voltage. The current through a branch of a parallel network is inversely proportional to the amount of resistance of the branch. The total current of a parallel circuit is equal to the sum of the individual branch currents of the circuit. The total power consumed in a parallel circuit is equal to the sum of the power consumptions of the individual resistances. |
|
|
