| ELECTRONIC COMPONENTS - INDUCTORS | ||

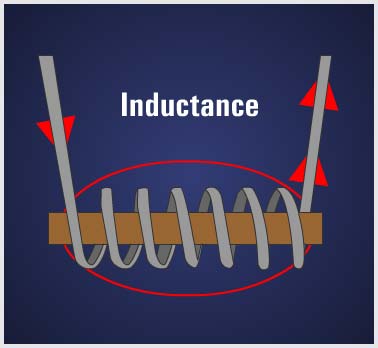

Just as the example of the boat was used to explain the growth of current in a circuit, it can also be used to explain current decay. When the force applied is removed, the boat still continues to move through the water for a while, eventually coming to a stop. This is because energy was being stored in the inertia of the moving boat. After a period of time, the friction of the water overcomes the inertia of the boat, and the boat stops moving. Just as inertia of the boat stored energy, the magnetic field of an inductor stores energy. Because of this, even when the power source is removed, the stored energy of the magnetic field of the inductor tends to keep current flowing in the circuit until the magnetic field collapses. |
|
|
| 46 of 61 | ||
