 ELECTRONIC COMPONENTS - AC GENERATORS

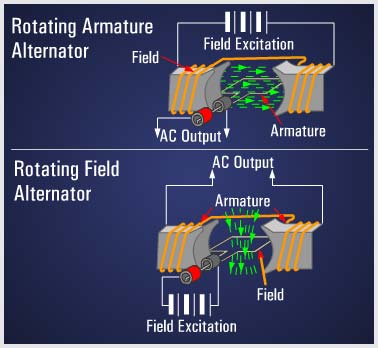

The part of a generator that produces the magnetic field is called the field. That part in which the voltage is induced is called the armature.

For relative motion to take place between the conductor and the magnetic field, all generators must have two mechanical parts — a rotor and a stator. The rotor is the part that rotates; the stator is the part that remains stationary.
Electronic Components - AC Generators
